KULP K40D-PB

Build Specifications

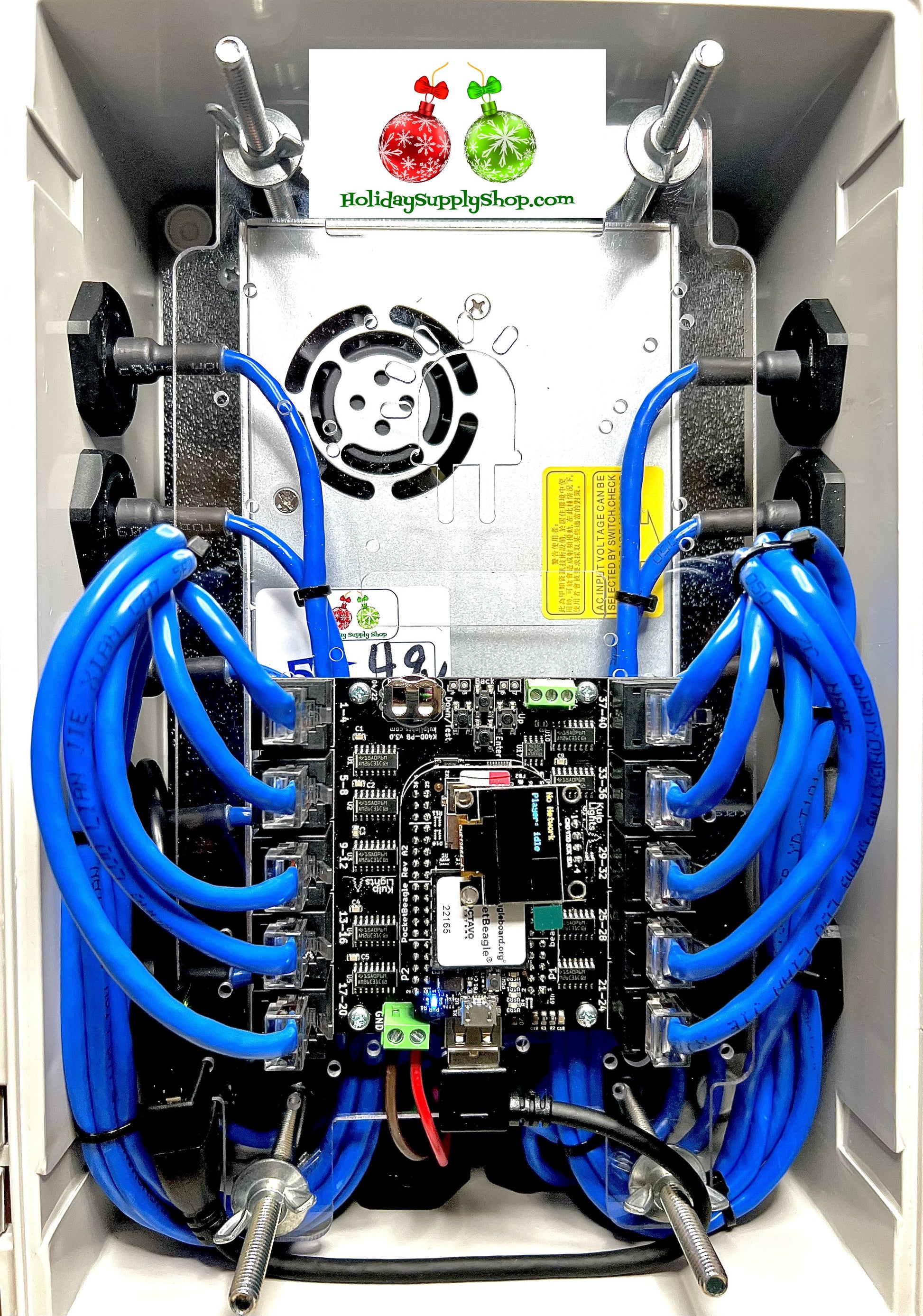

This Kulp K40D-PB, will be built in a bud box 32016( or similar) enclosure, pocket beagle, 32 GB SD card,10 waterproof outputs for receivers, and a 5v 350-watt meanwell power supply.

Board Specifications

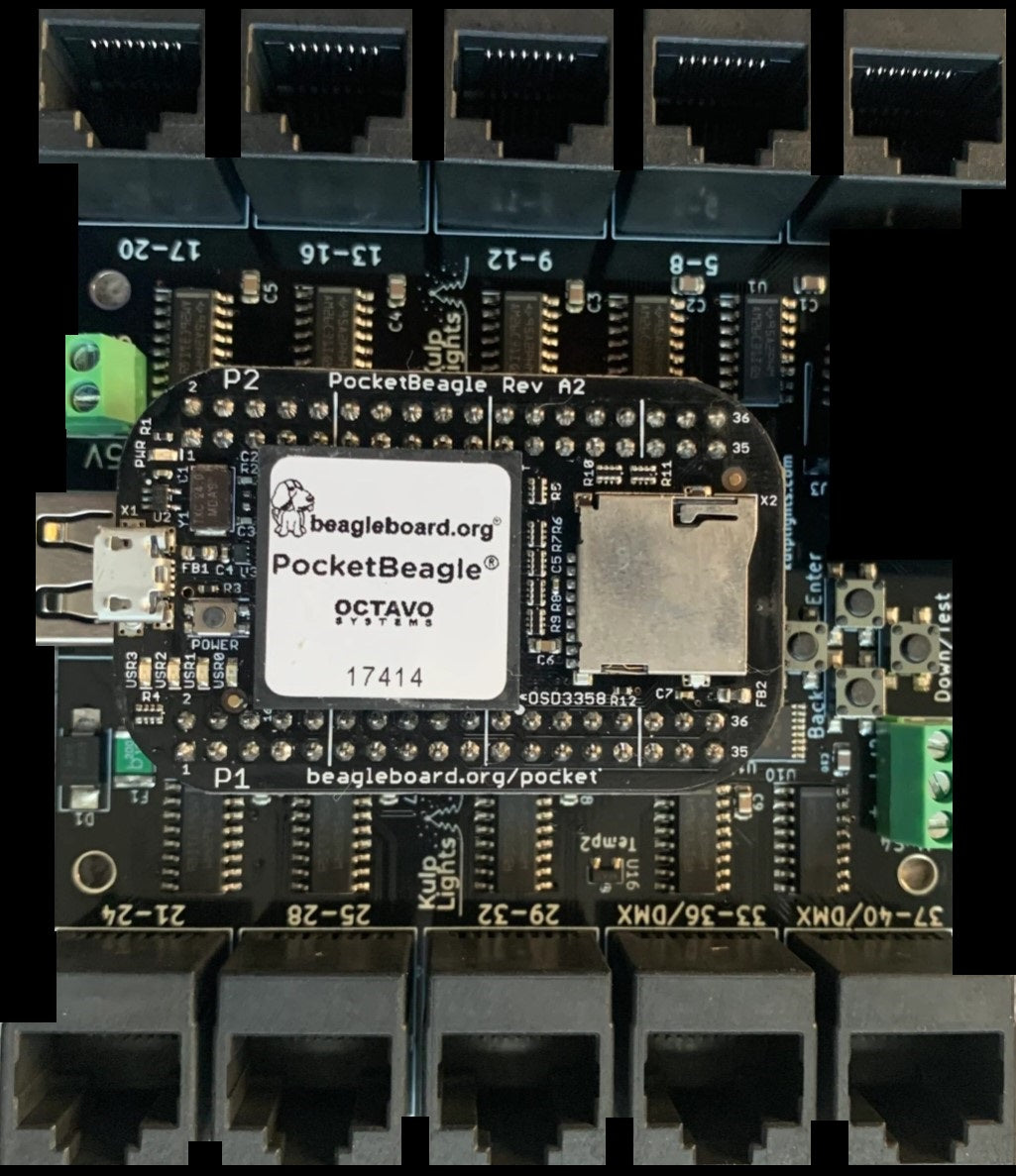

The K40D-PB is a cape for the PocketBeagle designed to drive ws2811 LED pixels. It has 10 RJ45 differential ports that can output 40 strings of pixel data. It also has a single UART based differential output for driving DMX, Renard, LOR, PixelNet, etc….

The K40D-PB also provides a Real Time Clock, temperature sensors, a header for an OLED display, and four push buttons for navigating menus on the display.

Lead Time

This build will be built once order is paid for.  Normal lead time for completion and shipping is 1-3 weeks.  If item cannot be built in the time frame due to equipment shortages, you will receive notification of an approximate build time.
