Falcon Smart Receiver V4

Build Specifications

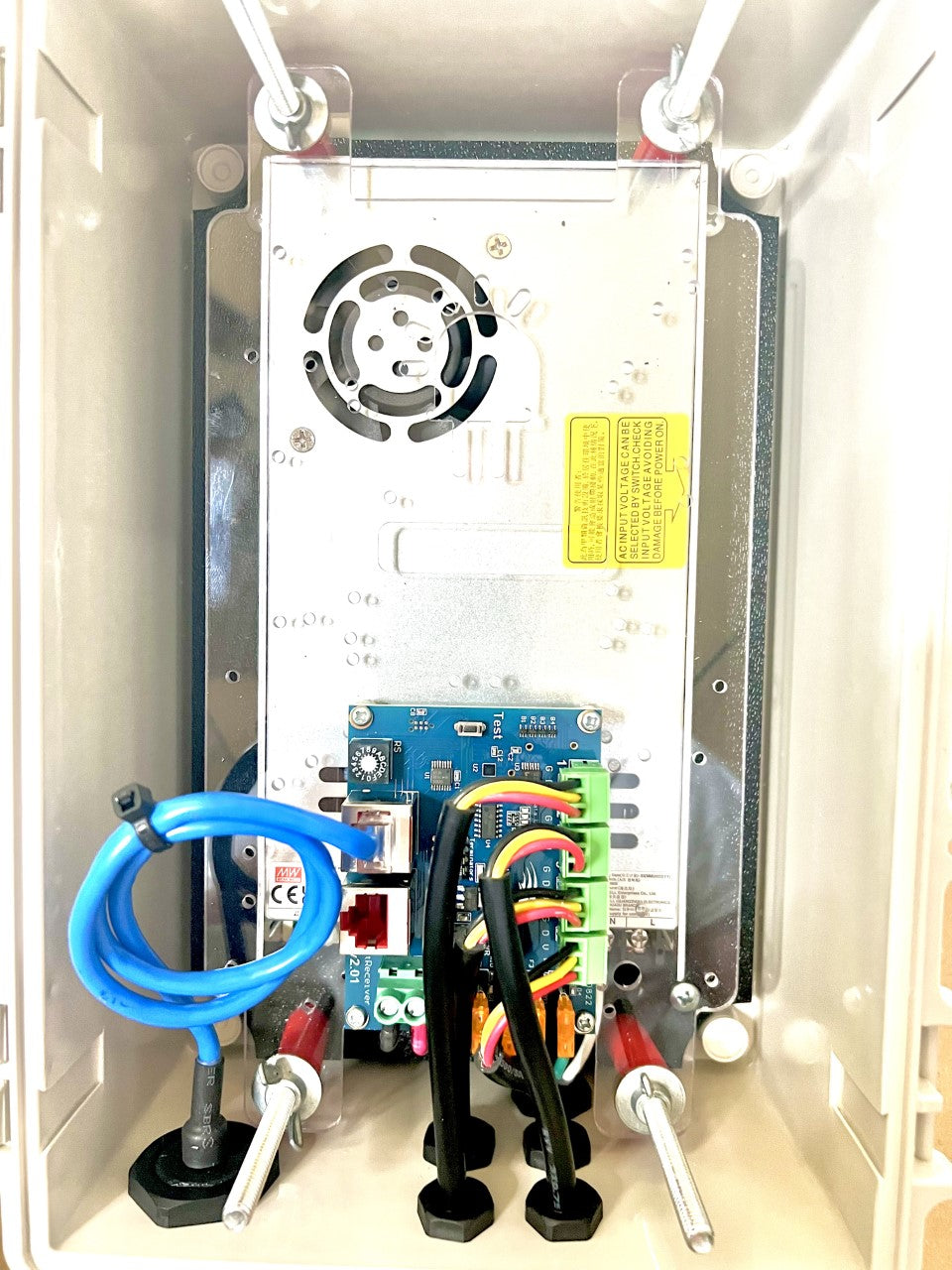

This Falcon V4 Smart Receiver, will be built in a Budbox 32016 enclosure (or similar), Xconnect pigtails, 1 waterproof network outputs, and A 12v 350-watt meanwell power supply.

Board Specifications

The 4-String Differential SmartReceiver v2.01 Board can be connected to the 16V3, F48, F16V4, F48V4, F16V3 or F16V4 Differential Expansion Boards allowing 4 strings to be placed up to 300+ feet from the controllers.

Can be daisy-chained together with other SmartReceivers v2.01 (maximum six per chain). The chain will share the allocated number of pixels configured for the port it is connected to.

The SmartReceiver v2.01 has a built in test mode that is activated by a push button. Great for testing pixels without the need of a controller. The board features four LEDS that will light respectively when data is detected on the four data lines.

Connectors Included.

Note: Supports 3-wire pixels only.

Important Notes:

Works with F16V3, F48, F16V4, F48V4 and F16V3 or F16V4 Differential Expansion Boards.

Lead Time

This build will be built once order is paid for.  Normal lead time for completion and shipping is 1-3 weeks.  If item cannot be built in the time frame due to equipment shortages, you will receive notification of an approximate build time.
